Investronica Automatic Cutting Systems Automatic Cutting Systems
ˆClick above logo to visit Investronica's website.

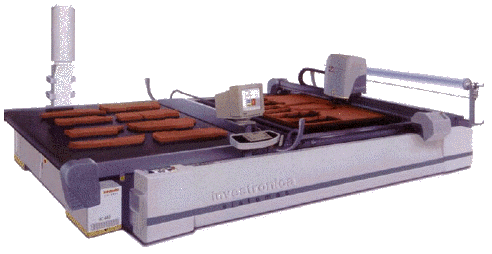

Investronica Automatic Cutting Systems
Investronica offers four types of automatic cutting systems:
Diamond
Diamond


INVESTRONICA SISTEMAS is the most advanced solution for the cutting room, especially for cutting denim fabric, providing the greatest productivity in the market together with maximum cutting quality, including cutting the materials most frequently used. This system includes the innovative solution BALANCED KNIFE and includes the following features:


    • Cutting height 70 mm.
    • Conveyor belt surface to transport material automatically.
    • Digital control unit with 32 bit processor designed to drive five servo-controlled axes.
    • Self-diagnostics for automatic detection of errors.
    • Integrated control post in a WINDOWS environment from which the cutting process may be monitored and modified using the program EASYCUT.
    • Automatic detection and correction of blade bending.
    • BALANCED KNIFE allows height moulds of hard fabric to be cut, avoiding differences between the top and lower layer of the mould.
    • Automatic blade speed adjustment to prevent fusion of difficult materials
    • Automatic grinding mechanism.
    • Optimisation of grinding times.
    • Automatic correction of blade wear
    • New compact, ergonomic design.
    • "On line" connection with the whole INVESMARK range.
    • Connectivity with other systems through ISO/ANSI/AAMA 001 1992 standards.
    • Reports on production completed.
    • Automatic selection of user language.
    • Real time monitoring of production data.

It has a great variety of options to adapt the system better to various specific production requirements.

  1 TRAVELLING SYSTEM lateral movement to provide service to several laying tables.
  2 Inclusion of the "MATCHING SYSTEM" for cutting checked or patterned fabrics.
  3 Blade cooling system.
  4 Different types of heads and blades for special applications.
  5 Double drill and thermal drill.
  6 Different vacuum table measurements.
  7 Barcode data input
  8 Automatic control for adaptable regulation of the vacuum level.
  9 Different lengths and widths of cutting window.
10 Automatic mat cutting system.

The distinctive improvements of the INVESCUT DIAMOND system over INVESCUT TOPAZ are:

    • New fully reinforced headpiece.
    • Greater blade action speed.
    • More robust, resistant and longer lasting blade.
    • Fully reinforced blade action.
    •  blade grinding mechanism.
    • 75 mm. capacity under the cloth press foot (70 mm. with automatic correction).
    • Special anti-vibration design.

TopazTopaz


INVESTRONICA SISTEMAS is the most advanced solution for the cutting room providing the greatest productivity on the market and maximum cutting quality, even when cutting the most difficult materials. Ideal for mass and standardised production in the tailoring industry or motor trade, with the following characteristics:


    • Cutting height up to 70 mm.
    • Conveyor belt surface to transport material automatically.
    • Digital control unit with 32 bit processor to drive five servo-controlled axes.
    • Self-diagnosis for automatic detection of errors.
    • Integrated control post in a WINDOWS environment from which the cutting process may be monitored and modified using the program EASYCUT.
    • Automatic detection and correction of blade bending.
    • BALANCED KNIFE allows height moulds of hard fabric to be cut, avoiding differences between the top and lower layer of the mould.
    • Automatic blade speed adjustment to prevent fusion of difficult materials.
    • Automatic grinding mechanism.
    • Optimisation of grinding times.
    • Automatic correction of blade wear.
    • New compact, ergonomic design.
    • "On line" connection with the whole INVESMARK range.
    • Connectivity with other systems through ISO/ANSI/AAMA 001 1992 standards.
    • Reports on production completed.
    • Automatic selection of user language.
    • Real time monitoring of production data.

This system has a large number of options, allowing full adaptation of the equipment to the real needs to be achieved by each user:

  1 TRAVELLING SYSTEM lateral movement to provide service to several laying tables.
  2 Inclusion of the "MATCHING SYSTEM" for cutting checked or patterned fabrics.
  3 Blade cooling system.
  4 Different types of heads and blades for special applications.
  5 Double drill and thermal drill.
  6 Different vacuum table measurements.
  7 Barcode data input
  8 Automatic control for adaptable regulation of the vacuum level.
  9 Different lengths and widths of the cutting window.
10 Automatic mat cleaning system

QuartzQuartz


This is the intermediate model in the INVESCUT range. It is the most versatile, providing the best value for money in terms of Productivity and Price. It is suitable for companies with low, medium or high volumes. Its main characteristics are as follows:


    •  Cutting height 40 mm.
    • Conveyor belt surface to transport material automatically.
    • Digital control unit with a 32 bit processor designed to drive five servo-controlled axes.
    • Self-diagnostics for automatic detection of errors.
    • Integrated control post in a WINDOWS environment from which the cutting process may be monitored and modified using the EASYCUT program.
    • Automatic blade speed adjustment to prevent fusion of difficult materials
    • Automatic grinding mechanism.
    • Optimisation of grinding times
    • Automatic correction of blade wear
    • Compact, ergonomic design.
    • "On line" connection with the whole INVESMARK range.
    • Connectivity with other systems through ISO/ANSI/AAMA 001 1992 standards.
    • Reports on production completed.
    • Automatic selection of user language.

INVESCUT QUARTZ offers the possibility of including different options which improve its performance even more and allow perfect adaptation to the users real needs:

  1 TRAVELLING SYSTEM lateral movement to provide service to several laying tables.
  2 Inclusion of the "MATCHING SYSTEM" for cutting checked or patterned fabrics.
  3 Blade cooling system.
  4 Different types of heads and blades for special applications.
  5 Double drill and thermal drill.
  6 Different vacuum table measurements.
  7 Barcode data input
  8 Automatic control for adaptable regulation of the vacuum level.
  9 Different lengths and widths of the cutting window.
10 Automatic mat cleaning system.

SapphireSapphire


This is the smallest in the new range of INVESCUT cutting systems. It provides the greatest service in cutting for low mould height, making it especially suitable for the Custom Tailoring Industry, Furniture and Upholstery. Its main characteristics are as follows:


    • Cutting height 19 mm.
    • Conveyor belt surface to transport material automatically.
    • Digital control unit with a 32 bit processor, designed to drive five servo-controlled axes.
    • Adaptable control for automatic regulation of the vacuum level.
    • Self-diagnosis for automatic detection of errors.
    • Integrated control post operating in a WINDOWS environment, from which it is easy to monitor and modify the cutting process with the program EASYCUT.
    • Automatic blade speed adjustment to prevent fusion of difficult materials
    • Automatic sharpening mechanism.
    • Optimisation of grinding times.
    • Automatic correction of blade wear.
    • Compact, ergonomic design.
    • "On line" connection with the whole INVESMARK range.
    • Connectivity with other systems through ISO/ANSI/AAMA 001 1992 standards.
    • Reports on production completed.
    • Automatic selection of user language.

INVESCUT SAPPHIRE also has a large number of options, which allow full adaptation of the equipment to the real needs to be achieved by each user:

TRAVELLING SYSTEM lateral movement to provide service to several laying tables.
Inclusion of the "MATCHING SYSTEM" for cutting checked or patterned fabrics.
Blade cooling system.
Different types of heads and blades for special applications.
Double drill and thermal drill.
Different vacuum table measurements.
Barcode data input.
Ink marker (ultraviolet, normal)


Automatic Cutting System Features:
    • Digital control that increase reliability and precision
    • Conveyor take off table to remove bundles
    • Conveyor belt surface to transport material automatically over the cutter
    • Control post station integrated with EASYCUT software
    • Lateral Vacuum for a perfect sealed cutting chamber
    • Direct numerical control on line with your CAD system
    • Sharpening mechanism tilt accordingly to the blade position
    • Plastic recovery assembly
, to keep a perfect sealed cutting area

Control Software:
    • Real time monitoring of cutting data
    • Matching system, automatic cutting and control of plaid materiel
    • Fuzzy logic that learns and apply proper cutting parameters
    • Easycut for better cut quality control
    • Activity logs provide a complete report of all cutting activities
    • Self-Diagnostics for detection of errors through the console
    • Connectivity with major CAD systems

Options available:
    • Traveling unit, to move the cutter from one spreading table to the next.
    • Matching system with Camera, to read the repeat of the fabric.
    • Blade cooling system, to avoid fusing certain fabric.
    • Double drill and thermal drill.
    • Different Vacuum table measurement.
    • Different types of heads and blades for specific applications.
    • Barcode data input.
    • Bristle cleaner.


INVESTRONICA'S INVESPLOT:
INVESPLOT PARTNER
GENERAL DESCRIPTION
Invesplot PARTNER is a stand-up, wide format, raster ink jet plotter. This design has several unique advantages:
    • Very high productivity, regardless of the amount of information to be printed.
    • Possibility of working with different paper widths.
    • Small dimensions, using minimal floor space.
    • Easy to install.
    • Friendly user interface.
    • Very quiet.
    • Very low running costs.

PRINTING TECHNOLOGY
Invesplot PARTNER PARTNER uses XAAR piezoelectric ink jet engine technology to allow fast, quiet and reliable operation, with very low operation costs.

MEDIA
Invesplot PARTNER design allows the use of different widths of paper of up to 2 m., wide. The paper rolls can be of a diameter up to 200 mm., approx.

DIMENSIONS
Invesplot PARTNER is a upright, compact design that uses very reduced space (L2635 mm., W 600 mm., H 1140 mm.) It uses less floor space than conventional flat bed plotters.

INSTALLATION AND OPERATION
The PARTNER is a very easy to install and operate plotter due to their design and operator interface. Due to their ink jet technology and mechanical design it is very quiet. It also has a lot of options that can be included to match all the users needs

SOFTWARE
There are two main software options to drive the Invesplot PARTNER:
a) PlotWin software PlotWin is a very friendly standard WINDOWS 32 bits application that allows the use of PARTNER as a standard Invesmark plotter, with direct access to the Invesmark database.
b) HP-GL spooler HP-GL spooler is a very friendly standard WINDOWS 32 bits application which is fully independent of Invesmark. This option can manage a queue of plotting jobs submitted as plot files in HP-GL format. Plotting jobs can be added, deleted or have its priority changed. By using this option, the PARTNER plotter can be used directly as an output device for any third party application software that is capable of generation HP-GL files.

USER INTERFACE
The software modules provided by Investronica are very friendly, easy to use WINDOWS 32 bits applications, that control the job queue of the PARTNER, from a standard PC running WINDOWS 98/NT/2000. The PARTNER has a key pad operation with a display panel to set-up the plotter and to perform a variety of self-tests for easy installation and operation.

INVESPLOT JOKER

INVESPLOT P JOKER 1800 / 2200 RASTER.
Automatic pattern and marker drawing on any scale.

INVESPLOT P JOKER 1800 / 2200 RASTER are ink jet plotters with digital control, designed to quickly and precisely obtain drawings of these (markers), which may contain additional alphanumerical information.
The RASTER technology is especially adapted to performing drawings with a high information density, maintaining a high productivity in lineal metres of drawn paper, regardless of the density of the information.

INVESPLOT JOKER1800 y 2200 RASTER bring together a very high productivity , high resolution, eliminating the traditional problem of the raster plotters known to the APPAREL industry for their "Lack of definition on curves".
Moreover, their flexibility has led to being able to easily select their resolution, line thickness, etc., thus resolving the lack of resolution raster plotters had in scale drawing.
Its design is ergonomic and includes easy paper loading and unloading, as well as a fully independent paper drive axle system. The INVESPLOT JOKER 1800 and 2200 RASTER are compatible with the INVESMARK FUTURA and other compatible systems on the market

INVESPLOT P-2000

INVESPLOT 2000 VECTOR / 2400 VECTOR.
Automatic pattern and marker drawing on any scale.

INVESPLOT P 2000 / 2400 VECTOR are vectorial pen plotters with digital control, designed to quickly and precisely obtain drawings of these (markers), which may contain additional alphanumerical information.
Their design is ergonomic and includes easy paper loading and unloading. It has different drawing utility options. The paper drive system is independent and all the moving parts protected.
INVESPLOT P 2000 VECTOR y P 2400 VECTOR are compatible with the INVESMARK NT and other compatible systems on the market.

Please call or Email us to inquire about machinery and/or availability.
